Aloft Montréal Airport

Type of parking

• Outside

Total number of places

• Between 25 and 100 seats

Presence of slope

• Gentle slope

Number of reserved places

• Reserved seat(s) for people with disabilities: : 3

Reserved seat location

• Near the entrance

Reserved seat size

• Free width of at least 2.4 m
• Restricted Side Aisle Clear Width : 1,1 m

Reserved seat identification

• Using the panel and on the ground

Pathway leading to the entrance

• Circulation corridor at least 1.1 m wide
• Accessible driveway leading to the entrance

Front door

• Free width of at least 80 cm

Vestibule

• Vestibule at least 1.5 m deep and at least 1.2 m wide

2nd Entrance Door

• Free width of at least 80 cm

Front door

• Sliding doors

2nd Entrance Door

• Sliding doors

Course without obstacles

• 2 or more steps : 2 steps

Interior access ramp

• Fixed access ramp
• Free width of at least 87 cm
• Handrails on each side

Elevator

• Dimension of at least 0.80 m wide x 1.5 m deep
• Free width of the door opening at least 80 cm

Counter

• Counter surface : 87,5 cm above floor
• No clearance under the counter
• Wireless or removable payment terminal

Door

• single door
• Maneuvering space of at least 1.5m wide x 1.5m deep on each side of the door / chicane
• Free width of at least 80 cm
• Opening requiring significant physical effort
• No electric opening mechanism

Washbasin

• Maneuvering space in front of the washbasin at least 80 cm wide x 120 cm deep
• Surface between 68.5 cm and 86.5 cm above the floor
• Clearance under the sink of at least 68.5 cm above the floor

Accessible washroom(s)

• Maneuvering space in front of the door at least 1.5 m wide x 1.5 m deep
• Dimension : 1,45 m wide x 1,51 m deep
• Interior Maneuvering Space : 1,10 m wide x 1,30 m deep

Accessible toilet cubicle door

• Free width of the door at least 85 cm
• Door opening to the outside of the cabinet
• Door aligned with transfer area adjacent to bowl

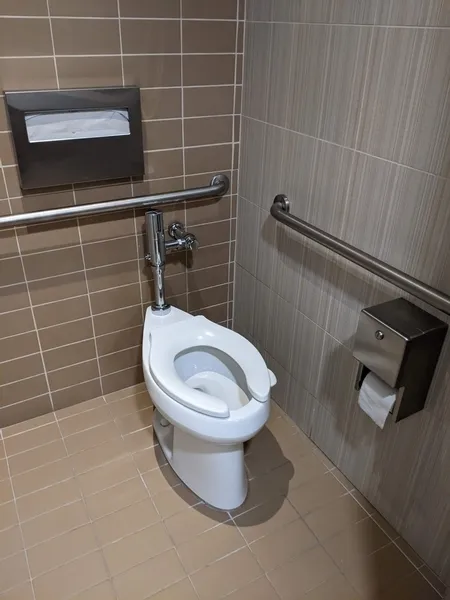

Accessible washroom bowl

• Center (axis) away from nearest adjacent wall : 45 cm
• Transfer zone on the side of the toilet bowl of at least 90 cm
• Toilet bowl seat located between 40 cm and 46 cm above the floor
• Toilet without water tank
• No back support for tankless toilet
• Toilet equipped with an automatic flush

Accessible toilet stall grab bar(s)

• Horizontal to the left of the bowl
• Horizontal behind the bowl
• At least 76 cm in length
• Located between 75 cm and 85 cm above the floor

Door

• single door
• Maneuvering space of at least 1.5m wide x 1.5m deep on each side of the door / chicane
• Free width of at least 80 cm
• Opening requiring significant physical effort
• No electric opening mechanism

Washbasin

• Maneuvering space in front of the washbasin at least 80 cm wide x 120 cm deep
• Surface between 68.5 cm and 86.5 cm above the floor
• Clearance under the sink of at least 68.5 cm above the floor

Changing table

• Raised Surface : 94 cm above floor
• Clearance under the table at least 68.5 cm above the floor

Accessible washroom(s)

• Maneuvering space in front of the door at least 1.5 m wide x 1.5 m deep
• Dimension of at least 1.5 m wide x 1.5 m deep

Accessible toilet cubicle door

• Free width of the door at least 85 cm
• Door opening to the outside of the cabinet
• Door aligned with transfer area adjacent to bowl

Accessible washroom bowl

• Center (axis) between 46 cm and 48 cm from the nearest adjacent wall
• Transfer zone on the side of the toilet bowl of at least 87.5 cm
• Toilet bowl seat located between 40 cm and 46 cm above the floor
• Toilet without water tank
• No back support for tankless toilet
• Toilet equipped with an automatic flush

Accessible toilet stall grab bar(s)

• Horizontal to the left of the bowl
• Horizontal behind the bowl
• At least 76 cm in length
• Located between 75 cm and 85 cm above the floor

Internal trips

• Circulation corridor of at least 92 cm
• Maneuvering area of at least 1.5 m in diameter available

Tables

• Accessible table(s)

cafeteria counter

• Maneuvering space located in front of the counter of at least 1.5 m in diameter

Internal trips

• Some sections are non accessible

• Swimming pool: no equipment adapted for disabled persons

• Access to swimming pool : 6 steps
• Access to swimming pool: no access ramp
